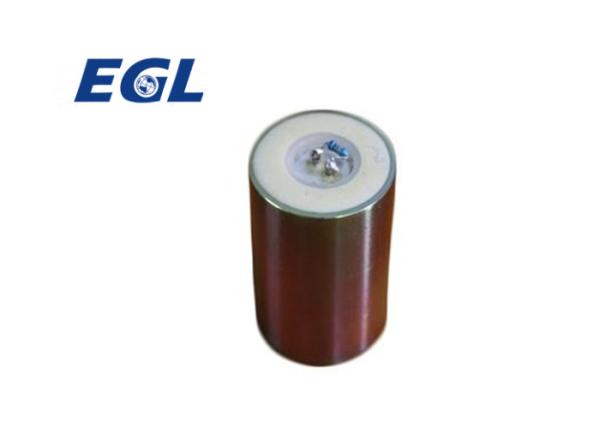

Horizontal Geophone Element Low Frequency For Deep Seismic Survey

Brand Name : EGL

Model Number : EG-2-I

Place of Origin : China

MOQ : 1 PCS

Payment Terms : T/T, Western Union, L/C,Paypal

Supply Ability : 10000pcs/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Price : Negotiable

Natural Frequency : 2Hz±10%

Coil resistance : 6040Ω±5%

Sensitivity/G (v/cm.s-1) : 2Hz±10%

Moving Mass : 60g

Typical case to coil motion p-p : 3mm

Operating Temperature Range : -25℃ TO +55℃

Contact Now

Geophone Element 2Hz Vertical / Horizontal

The geophone 2hz (EG-2-I) is mainly used for deep seismic survey, advanced forecasting, natural seismic survey, bridge dam and highway railway and other pulsating microseismic measurements, safety monitoring and so on.

Data sheets of geophone 2Hz:

Type	EG-2-I
Natural Frequency ( Hz )	2±10%
Sensitivity/G (v/cm.s-1)	2±10%
Coil Resistance/ Rc(Ω)	6040±5%
Internal Resistance/ R(Ω)	5800±5%
Damping Coefficient Bt	0.7±10%
Harmonic Distortion D ( % )	≦0.2
Insulating Resistance Ri (MΩ)	≧20
Coil’s Maximum Displacement /P-P (mm)	3
Suspension Mass(g)	60
Element Diameter (mm)	38.5
Element Height (mm)	47
Element Weight (g)	250
Working Temperature(℃)	-25℃ to +55℃

All parameters specified here in are rated at a temperature 20℃±2℃ .

Horizontal Geophone Element Low Frequency For Deep Seismic Survey

Shipment	DHL ,UPS , FedEx , By Air , By Sea
By Express	By Air	By Sea
Suitable for under 50kgs Fast 5 - 7 work days High cost Door to door service Easy to pick up the goods	Suitable for more than 50kgs Fast 5 - 7 work days High cost Airport to Airport Professional broker needed	Suitable for more than 500kgs Slow 20 - 35 days Low cost Port to Port Professional broker needed
MOQ	1 set
Advantage	Fast shipping
Package	Packed by carton
Payment	Bank Transfer, Paypal, Western Union, Alibaba Pay
WhatsApp	+86 13991313681
Wechat	+86 13991313681
