High Damping Geophone 14Hz Waterproof Land Case Corrosion Resistance

  • 1
  • 2
  • 3

Brand Name : EGL

Model Number : Geophone 14Hz Vertical

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 14Hz±5%

Geophone Case : Vertical Waterproof Land Case

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Connector Type : without connector

Price : Negotiable

Contact Now

Seismic Geophone 14Hz Vertical with 1m leader cable without connector

Type Single Geophone 14Hz
Geophone Direction Vertical Direction / Horizontal Direction
Geophone Type 14Hz
Geophone Case Waterproof Land Case
Spike Steel Spike length75mm
Lead-in

Standard:1mlead-in with O.D.4.6mm

Custom Outer Diameter / Lead Distance available

Connector Type

*Mueller Clips

*Split Spring Clip

*KCK Connector( Male or Female / Push Fit or Lock Ring Type)

*Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual )

*Other Connector Type available

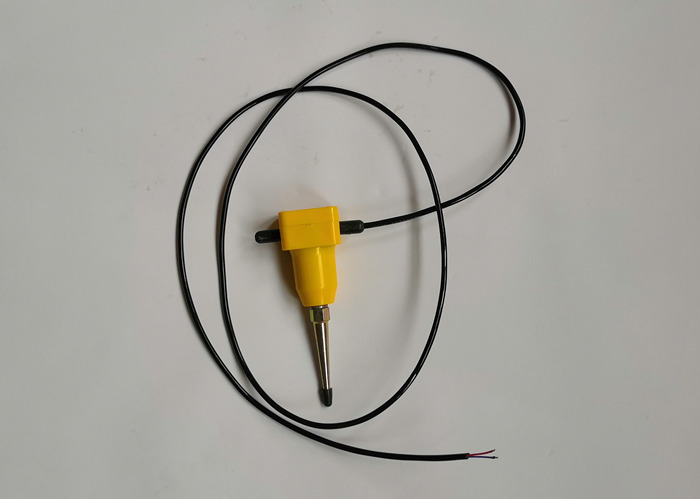

Single geophone 14Hz Vertical in land case with spike 75mm, with 1m leader cable,terminated without connector.

High Damping Geophone 14Hz Waterproof Land Case Corrosion Resistance

Type EG-14-II
Natural Frequency ( Hz ) 14 Hz ± 5%
Coil resistance(Ω) 375 Ω ± 5%
Open Circuit Damping 0.2 ±5%
Damping With Shunt Resistor 0.6 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s ) 28.8 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s ) 18.2 v/m/s ± 5%
Damping Calibration-Shunt Resistance(Ω) 640Ω
Harmonic distortion ( % ) <0.2%
Typical Spurious Frequency (Hz ) ≧240Hz
Moving Mass ( g ) 11.6g
Typical case to coil motion p-p ( mm ) 2mm
Allowable Tilt ≦20º
Operating Temperature Range ( ℃ ) -40℃ TO +100℃
Height ( mm ) 32mm
Diameter ( mm ) 25.4mm
Weight ( g ) 74g
Warranty Period 3 years
