1Hz Horizontal Seismic Geophone Element Split Spring Connector

Brand Name : EGL

Model Number : Single Geophone 1Hz Horizontal

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 1Hz±10%

Sensitivity : 200 v/m/s ±10%

Spike : 75mm

Lead-in Cable : 1 M

Geophone Case : Horizontal Waterproof Land Case

Connector Type : Split Spring connector

Price : Negotiable

Contact Now

Seismic Geophone 1Hz Horizontal terminated with Split Spring connector

It is a new low-frequency, high-sensitivity geophone ; widely used in deep seismic exploration, engineering pulsation measurement and other vibration analysis fields; each type has both traverse and longitudinal wave movements, which can be used flexibly.

Type	Single Geophone 1Hz
Geophone Direction	Vertical Direction / Horizontal Direction
Geophone Type	1Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

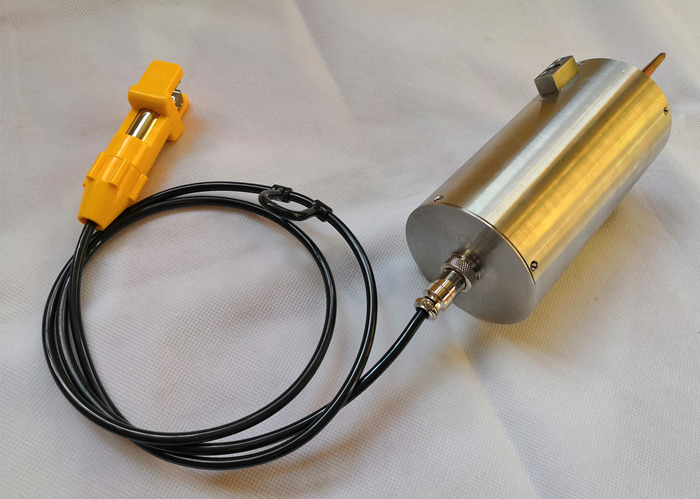

Single geophone 1Hz Horizontal in land case with spike 75mm, with 1m leader cable,with one D-Loop , terminated with Split Spring connector.

Type	Geophone 1Hz
Working Direction	Vertical or Horizontal
Nature Frequency Hz	1±10%
Damping	0.36±20%
Sensitivity(80 Hz)v/m/s	200±10%
DC Resistance Ω	3300±10%
Distortion %	≤0.2
Insulation Resistance MΩ	＞50
Moving Mass g	770
Max. Motion mm(p-p)	6
Working Temperature　℃	-25～55
Dimensions mm	φ65×106
Weight g	1400
Case Dimension mm	Vertical:φ75×166 Horizontal:75×75×166

All parameters specified here in are rated at a temperature 20℃±2℃ .

1Hz Horizontal Seismic Geophone Element Split Spring Connector

Product Tags:

seismic geophone tester

horizontal seismic sensor

1Hz Horizontal Seismic Geophone Element Split Spring Connector Images
