Brand Name : EGL
Model Number : Seismic Cable 12 Channels
Certification : ISO9001
Place of Origin : China
MOQ : 1 set
Payment Terms : T/T, Western Union,Paypal
Supply Ability : 1000set/month
Delivery Time : 5-8 work days
Packaging Details : Carton
Number of Channel : 12 Channels
Connector Type : Female NK-27 connector

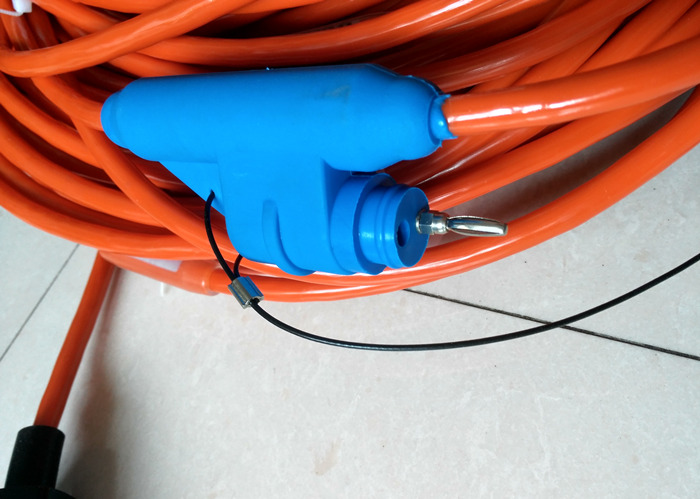

Take-out : Male kooter take-out
Interval : 5M or Custom Interval Distance
Lead-in Cable : 5M or Custom Lead-in Length
Working Temperature : -40℃~+70℃
Price : Negotiable
Seismic Cable 12 Channels, with male kooter take-out, 5m meter separation

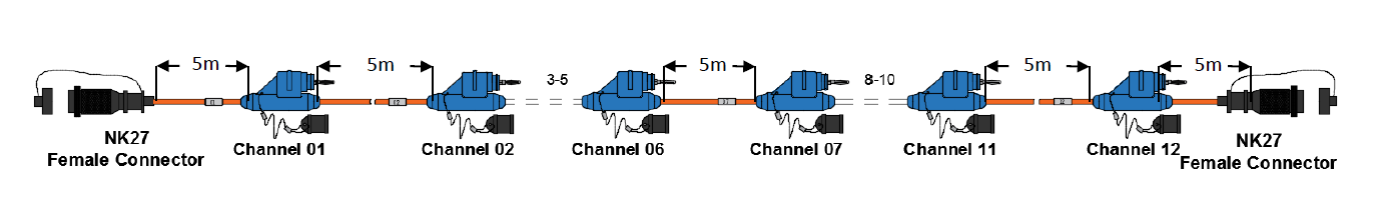

Seismic Cable 12 Channels, with male kooter take-out, 5m meter separation,5m lead-in at each end, and terminated with female NK-27 connector at each end, total cable length 65m.
Type | Seismic Cable |
Number of Channel | 12-channel /24-channel/48-channel Optional |
Connector Type | 27-pin connector/ 50-pin connector/ 55-pin connector/ 61-pin connector/ Optional |
Cable O.D | 7.2mm(32cores)/9.2mm(54cores) |
Take-out | Split Spring Clip Take-out Molded Type/ Split Spring Take-out Ordinary Type/ Mueller Take-out/ Kooter Take-out/ KCK Take-out/ Optional |
Lead-in | Custom Lead-in Length |
Interval | Custom Interval Distance |
Working Temperature | -40℃~+70℃ |
![]() |

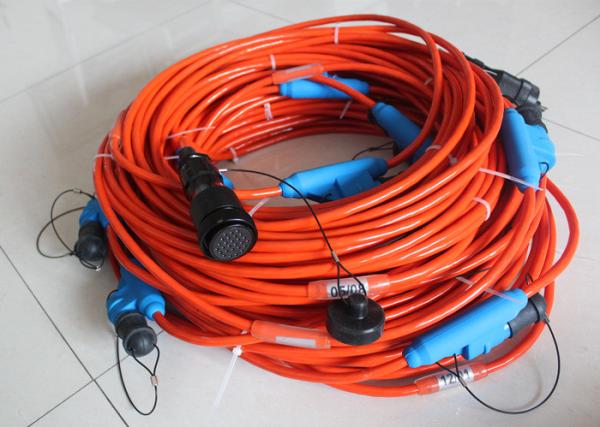

65m 12 Channels Geophysical Seismic Geophone 5m Meter Separation Images |
