4.5Hz±10% 75mm Seismic Geophone Of Rock Layer
Product Details of Seismic Geophone
60A, 100A modules are high-frequency geophones, which are widely used in geophysical prospecting, engineering vibration testing,
Seismic exploration, etc.
parameter of Seismic Geophone
| Type | Single Geophone 4.5Hz |
| Geophone Direction | Vertical Direction / Horizontal Direction |
| Geophone Type | 4.5Hz |
| Geophone Case | Waterproof Land Case |
| Spike | Steel Spike length75mm |
| Lead-in | Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available |
| Connector Type | *Mueller Clips *Split Spring Clip *KCK Connector( Male or Female / Push Fit or Lock Ring Type) *Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available |
| Type | EG-4.5-II |
| Natural Frequency ( Hz ) | 4.5±10% |
| Coil resistance(Ω) | 375±5% |
| Damping | 0.6±5% |
| Open circuit intrinsic voltage sensitivity ( v/m/s ) | 28.8 v/m/s ±5% |
| Harmonic distortion ( % ) | ≦0.2% |
| Typical Spurious Frequency (Hz ) | ≧150Hz |
| Moving Mass ( g ) | 11.3g |
| Typical case to coil motion p-p ( mm ) | 4mm |
| Allowable Tilt | ≦20º |
| Operating Temperature Range ( ℃ ) | -40℃ TO +100℃ |
| Height ( mm ) | 36mm |
| Diameter ( mm ) | 25.4mm |
| Weight ( g ) | 86g |
| Warranty Period | 3years |
Features of Seismic Geophone
1.Type of seismic cable
2.Number of channels: 24 channels
3.The connector type has 61 pins on one end and 61 holes on the other end (can be switched to 61 holes, 55 pins or 55 holes.)
4.Cable outer diameter 9.2mm (52 cores)
5.Take out KCK take out output
6.Interval custom length
7.Import custom length
8.Working temperature -40℃ to 70℃

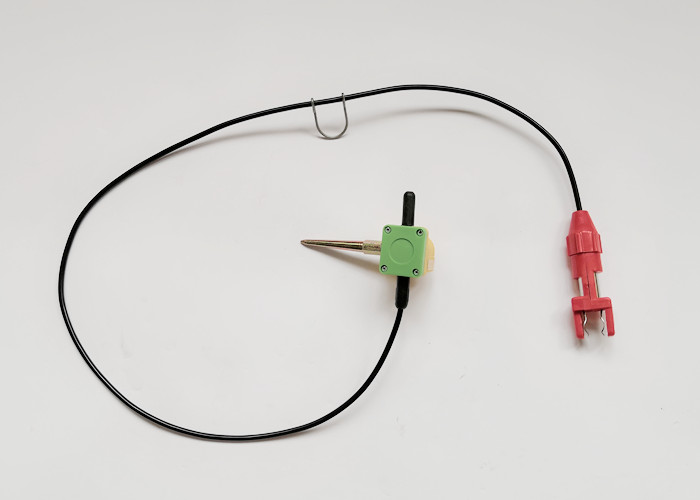

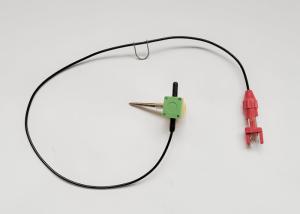

Single geophone 4.5Hz Vertical in land case with spike 75mm, with 1m leader cable,with one D-Loop , terminated with Split Spring connector.
All parameters specified here in are rated at a temperature 20℃±2℃ .
| Shipment | DHL ,UPS , FedEx , By Air , By Sea |
| By Express | By Air | By Sea |
Suitable for under 50kgs
Fast 5 - 7 work days
High cost
Door to door service
Easy to pick up the goods | Suitable for more than 50kgs Fast 5 - 7 work days
High cost
Airport to Airport
Professional broker needed | Suitable for more than 500kgs Slow 20 - 35 days
Low cost
Port to Port
Professional broker needed |
| MOQ | 1 set |
| Advantage | Fast shipping |
| Package | Packed by carton |
| Payment | Bank Transfer, Paypal, Western Union, Alibaba Pay |
| WhatsApp | +86 13991313681 |
| Wechat | +86 13991313681 |
