395 Ohm Vertical Seismic Geophone Land Case 20DX With Female XLR Connector

Brand Name : EGL

Model Number : EG-10-IV (20DX equivalent)

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Price : Negotiable

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 1000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Name : Seismic Geophone 10Hz

Frequency : 10Hz

Sensitivity : 28 V/m/s

Case : Land Case

Coil Resistance : 395 ohm

Connector : XLR Connector

Contact Now

Vertical Seismic Geophone 10Hz With Female XLR Connector

Seismic Geophone with stable performance, high fidelity and consistent quality in oil, gas exploration and other fields.

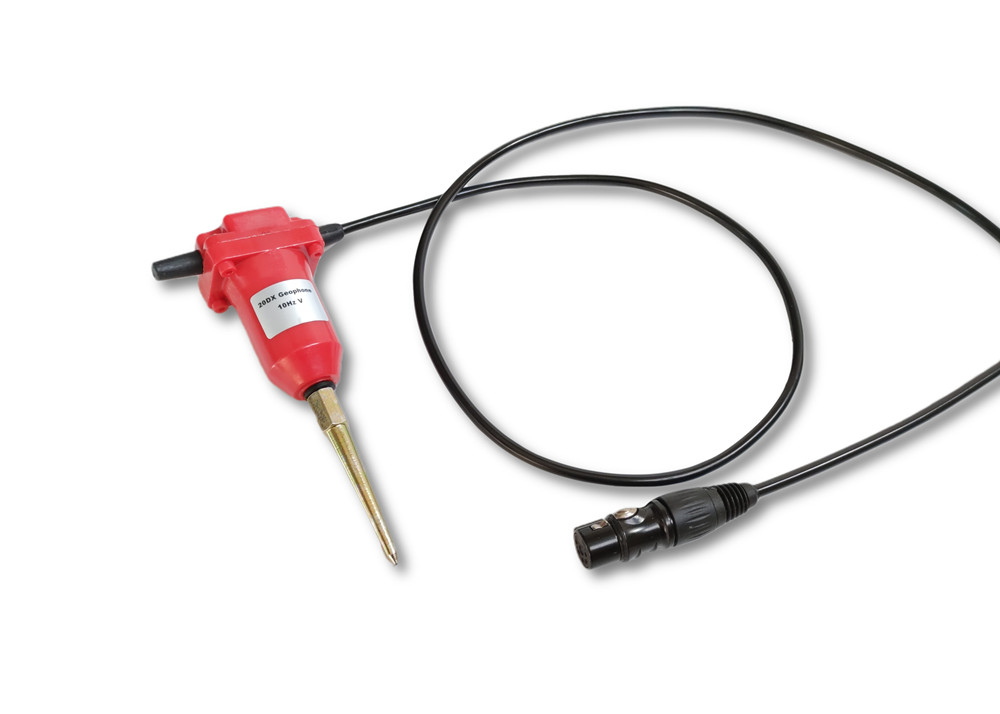

Single 20DX Seismic Geophone 10Hz vertical in waterproof land case with spike 75mm, with 1m leader cable, terminated with 5 hole female XLR connector.

395 Ohm Vertical Seismic Geophone Land Case 20DX With Female XLR Connector

GS 20DX Geophone 10Hz Response Curve

Specification

All parameters specified here in are rated at a temperature 20℃±2℃ .

Type	EG-10-IV (GS-20DX equivalent)
Natural frequency ( Hz )	10±5%
Open circuit damping	0.3
Damping with calibration shunt	0.70±5%
Calibration shunt resistance(ohm)	1000
Open circuit sensitivity (v/m/s)	28
Sensitivity with calibration shunt(v/m/s)	20±5%
Coil Resistance (ohm)	395±5%
Harmonic Distortion ( % )	≦0.2
Typical Spurious Frequency ( Hz )	≧200
Moving Mass ( g )	11
Max.coil excursion p-p (mm)	1.5
Max.tilt angle	20º
Element Diameter (mm)	25.4
Element Height (mm)	33
Element Weight (g)	87
Operating Temperature(℃)	-40℃ to +80℃

Company Profile

Tcherb Inc ( EGL) is a professional geophone supplier which located in China, with the aim to integrate separated resources and supply our clients with all around Geophone / Geophysical Products and related services. All the founding partners of EGL have experiences of over 20 years' in the field of Geophone production / Geophysical services with education background of PHD, Master or Geophysics Undergraduate Degree. We are a professional supplier for Geophysical Equipment, Geological Instrument and related Cables, Spare Parts, such as ( but not limited to) geophone sensor, three component geophone, single seismic geophone, geophone string, hydrophone, geophysical connector & plug, seismic cable, telemetry cable, resistivity cable, cable take-outs. All the products supplied by EGL are strictly produced as per Quantity Control System ISO9001:2008, API Specification Q1 and HSE. EGL also provide global logistics solution for every shipment including transportation by Sea, by Air and by Courier Express. During the past years, EGL has established stable business relationship with our Clients in US, Canada, Colombia, Chile, Peru, Brazil, UK, Germany, Saudi Arabia, UAE, Pakistan, India, Indonesia, Australia.

Packing & Delivery

Shipment	DHL ,UPS , FedEx , By Air , By Sea
MOQ	1 set
Advantage	Fast shipping
Package	Packed by carton
Payment	Bank Transfer, Paypal, Western Union, Alibaba Pay
