Single Seismic Geophone 100 Hz High Sensitivity 1m Leader Cable

Brand Name : EGL

Model Number : Geophone 100Hz Vertical

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Price : Negotiable

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 100Hz±10%

Geophone Case : Vertical Waterproof Land Case

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Connector Type : Split Spring connector

Contact Now

Single Seismic Geophone 100 Hz High Sensitivity 1m Leader Cable

The portable structure is convenient for field transportation and construction with the lowest workforce cost; Compared with the conventional detector series, it is easier to find problems and more easier to repair and maintenance

Type	Single Geophone 100Hz
Geophone Direction	Vertical Direction / Horizontal Direction
Geophone Type	100Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1m lead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	* Mueller Clips * Split Spring Clip * KCK Connector( Male or Female / Push Fit or Lock Ring Type) * Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) * Other Connector Type available

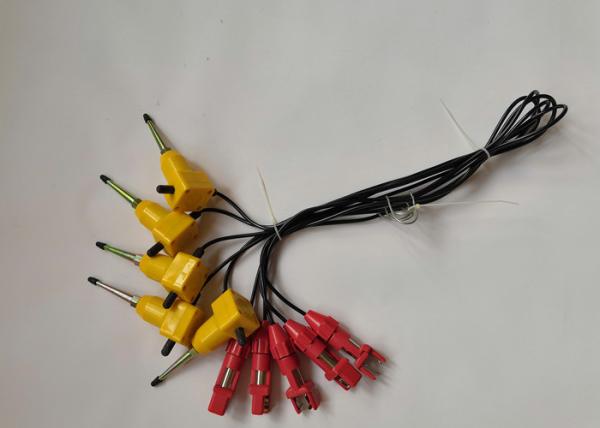

Single geophone 100Hz Vertical in land case with spike 75mm, with 1m leader cable,terminated with Split Spring connector.

Single Seismic Geophone 100 Hz High Sensitivity 1m Leader Cable

Type	EG-100-II
Natural Frequency ( Hz )	100 ±10%
Coil resistance(Ω)	820 ±10%
Open Circuit Damping	0.50 ±10%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s )	35.0 v/m/s ± 5%
Harmonic distortion ( % )	＜0.2%
Typical Spurious Frequency (Hz )	≧300Hz
Moving Mass ( g )	9.0g
Typical case to coil motion p-p ( mm )	1.2mm
Allowable Tilt	≦20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	32mm
Diameter ( mm )	26mm
Weight ( g )	80g
Warranty Period	3 years
