EG-15-OD-I Omni-Directional Geophone 15Hz , -40 to +80 degree C , OMNI-Directional Geophone High Sensitivity 65 V/m/s

  • 1
  • 2
  • 3

Brand Name : EGL

Model Number : EG-15-OD-I

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, PayPal，Credit card, Western Union

Supply Ability : 1000 pcs/month

Delivery Time : 10 work days

Packaging Details : Carton

Frequency : 15Hz

Sensitivity : 65 V/m/s

Coil Resistance : 1450Ω

Direction : OMNI-Directional

Diameter : 25.4 mm

Height : 36.5 mm

Temperature Range(℃) : -40℃ to +80℃

Warranty Period : 3 years

Contact Now

Product Description

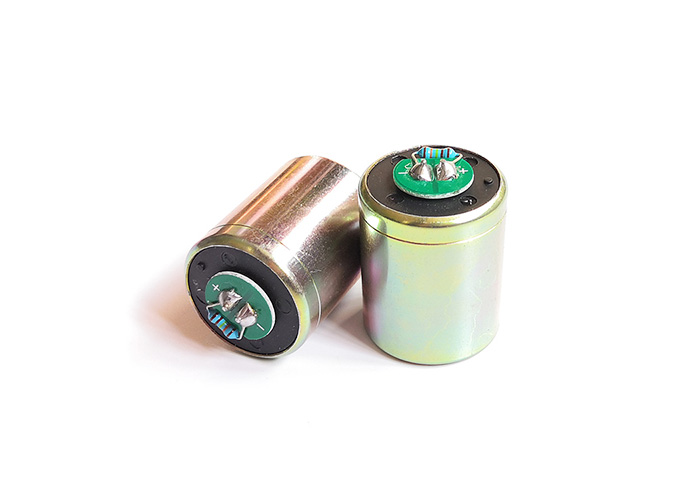

EG-15-OD-I Omni-Directional Geophone 15Hz

EG-15-OD-I geophone is a kind of geophone which can work at omni-directional.

Omnidirectional high temperature geophones are used in petroleum exploration, well logging exploration, industrial vibration monitoring and other fields.

- Any angle of 0 ~ 360° can be used;

- It has the characteristics of low damping, high sensitivity, small size and light weight;

- Sustainable use under -40°C ~ +80°C environment;

- Unique technology and process, the performance of the detector is more stable in high temperature environment.

EG-15-OD-I Omni-Directional Geophone 15Hz , -40 to +80 degree C , OMNI-Directional Geophone High Sensitivity 65 V/m/s
Specification
Type EG-15-OD-I
Natural Frequency ( Hz ) 15Hz ±10%
Direction 0 ~ 360°
Coil Resistance (Ω) 1450 ±5%
Sensitivity ( V/m/s ) 65V/m/s ±10%
Coil Resistance with 10k ohm shunt (Ω) 1265 ±5%
Sensitivity with 10k ohm shunt (V/m/s) 56V/m/s ±10%
Damping 0.5 ±15%
Damping with 10k ohm shunt 0.683 ±15%
Distortion <0.8%
Spurious Frequency (Hz) ≥200Hz
Maximum Coil Excursion P-P ( mm ) 2
Moving Mass(g) 11.3
Diameter ( mm ) 25.4mm
Height ( mm ) 36.5mm
Weight ( g ) 79g
Temperature Range(℃) -40℃ to +80℃
Warranty Period 3 years
All parameters specified here in are rated at a temperature 20℃±2℃ .
